SM30-30 Magnetic Fixed Moulded Case Circuit Breakers
Product Details
Product Description
The SPX SM30-30CS series of thermal magnetic fixed moulded case circuit breakers MCCB are designed for power distribution networks operating at AC 50/60Hz. They have a rated insulation voltage of 690V and a rated operating voltage of 415V or lower. The current of SM30-30CS series moulded case circuit breakers MCCB is from 2A, 3A, 3.2A, 5A, 10A, 15A,20A to 30A. It makes them ideal for distributing electric energy and protecting lines and power equipment from damage caused by faults such as overload, short circuit, and under voltage.There are two poles and three poles moulded case circuit breakers MCCB.
The SPX SM30-30 series of moulded case circuit breaker MCCB Parameter
|
Frame(A) |
SM30-30(NF-CW) |
Operating characteristics |
||||
|
Rated current in(A) |
(2)、3、(3.2)、5、10、15、20、30 |
|
||||
|
Rated voltage(V) |
AC 400V |
|||||
|
Rated insulation voltage(V) |
AC 500V |
|||||
|
Number of poles |
2 |
3 |
||||
|
Limited breaking capacity |
C |
S |
C |
S |
||
|
Short circuit interrupting |
1.5 |
1.5 |
1.5 |
1.5 |
||
|
Operate short circuit(kA) AC400V |
1 |
1 |
1 |
1 |
||
|

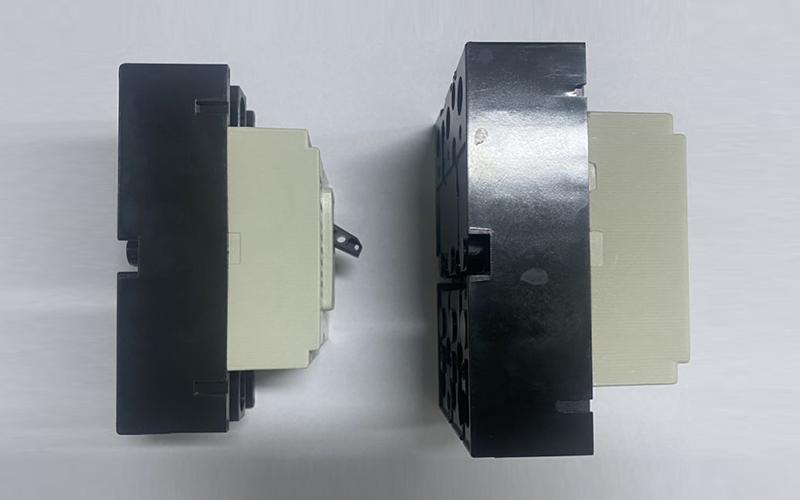

Profile picture |
||||||
|
|
a |
96 |
96 |
|||
|
b |
45 |
67 |
||||
|
c |
64 |
64 |
||||
|
Mounting picture |
||||||
|
|
d |
84.5 |
84.5 |
|||
|
e |
/ |
24 |
||||
|
f |
5 |
5 |
||||
|
Machine life |
7000 |
|||||
|
Electrical life |
4000 |
|||||
|
Electrical-operation device(MD) |
|
|||||
|
Extemal rotary handle |
|
|||||
|

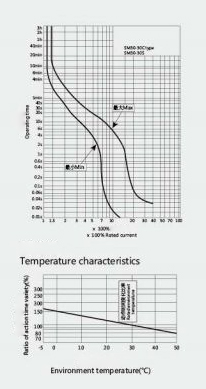

Automatic tripping device |
Thermal-magnetic |
|||||
The SPX SM30-250 series of moulded case circuit breaker MCCB Feature And Application
*Environmentally raw material cover and base
*With medium and high-end quality to meet the needs of different customers and adapt to different markets.
*2 poles and 3 poles
*C type, S type and H type
*Machine life is 4000 and electrical life is 2000
* Thermal magnetic
*Copper fixed contact with sliver point
*Protect electrical systems, control machines and equipment, distribute power, and can also be used in other electrical system related applications, such as UPS power supply, generator protection and control.
*with CE certificate

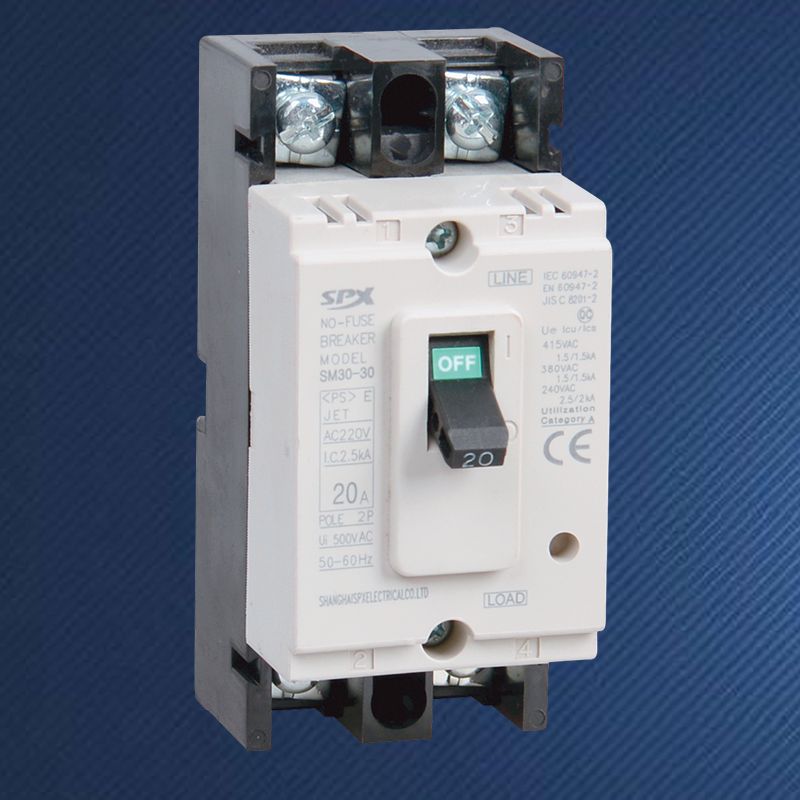

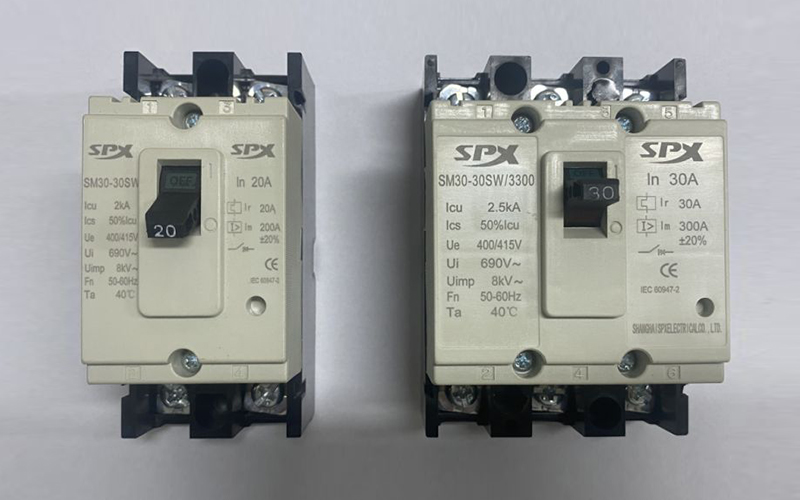

Front view
