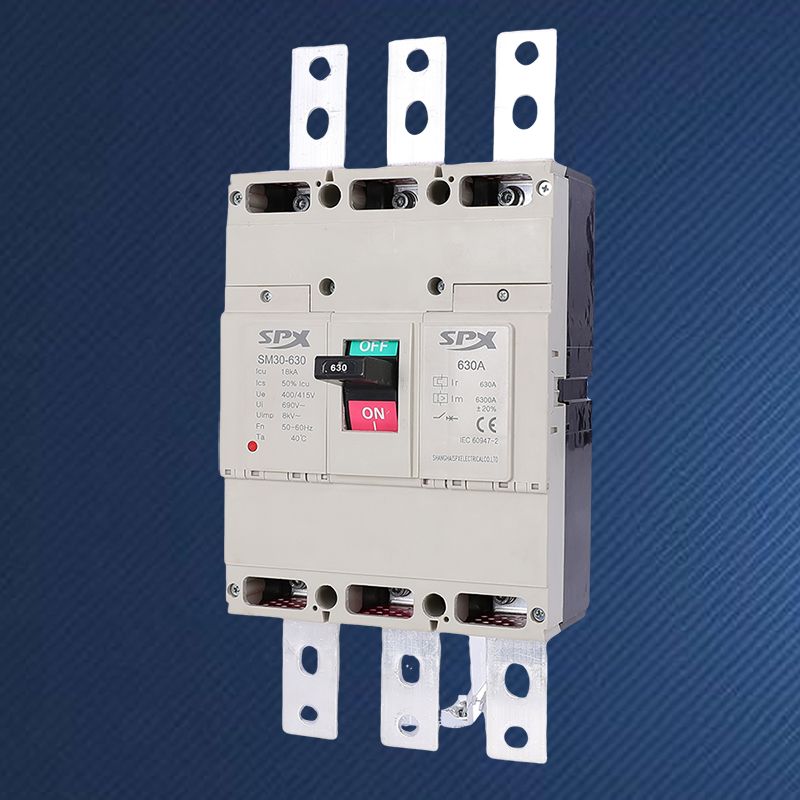

SM30-630 MCCB Molded Case Circuit Breaker
Product Details
Product Description
The SPX high quality SM30-630 series MCCB Molded Case Circuit Breaker is suitable for the circuit of AC50/60Hz, with rated voltage AC690V and below, rated operating voltage is 415V or lower, and rated current of 500A to 630A. It can protect circuits and electric equipment against overload, short circuit or undervoltage, and can also provide protection of overload, short circuit and under voltage for infrequent start of motor. molded case circuit breaker MCCB have functions of power distribution protection, motor protection, residual current protection and isolation. The molded case circuit breaker MCCB can be installed vertically, installed horizontally and can also enter the line from the bottom.
The SPX SM30-630 series of MCCB Molded Case Circuit Breaker Parameter
|
Frame(A) |
SM30-630 |
||
|
Rated current In(A) |
500/600/630/700/800 |
||
|
Rated voltage(V) |
AC 400V |
||
|
Rated insulation voltage(V) |
AC 690V |
||
|
Number of poles |
3 |
||
|
Limited breaking capacity |
C |
S |
H |
|
Short circuit interrupting capacity(kA)AC400V |
36 |
50 |
70 |
|
Operate short circuit(kA)AC400V |
18 |
25 |
35 |

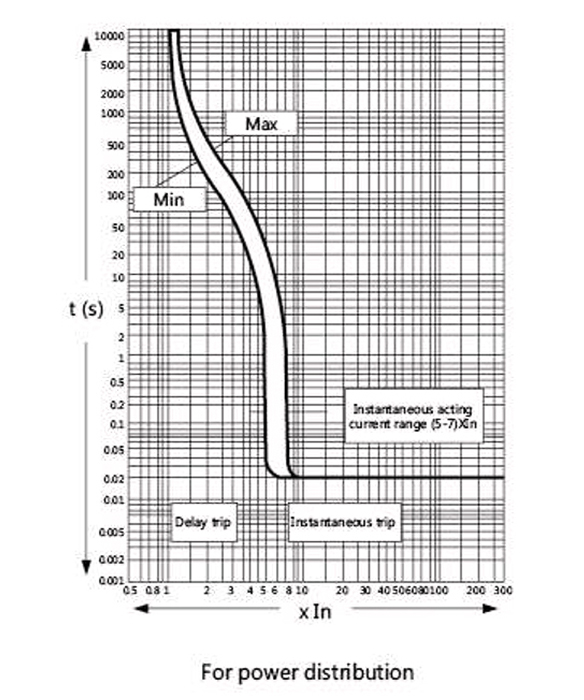

Operating characteristics
The SPX SM30-630 series of MCCB Molded Case Circuit Breaker Feature And Application
*Environmentally raw material cover and base
*Copper fixed contact with sliver point
*The current is from 500A,600A to 630A.
*Machine life is 4000 and electrical life is 1500
*C type, S type and H type
*3 poles
*Protect electrical systems, control machines and equipment, distribute power, and can also be used in other electrical system related applications, such as UPS power supply, generator protection and control.
*with CE certificate
SM30-630 series of molded case circuit breaker MCCB

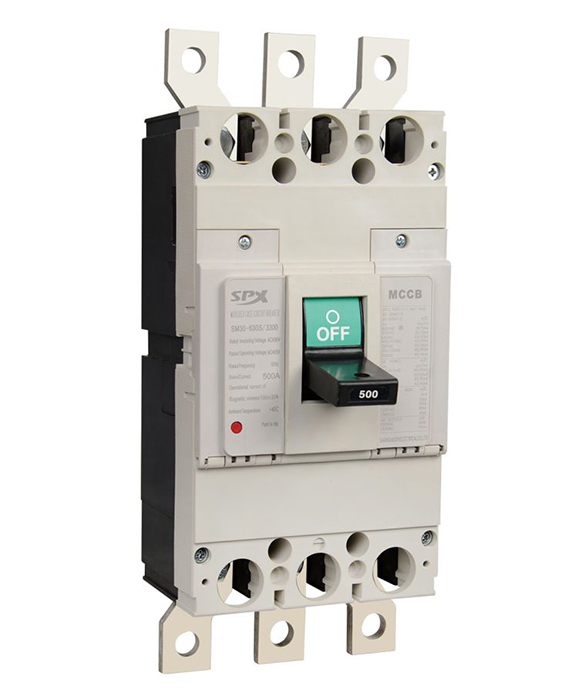

MCCB Molded Case Circuit Breaker Front view
Production process
FAQ
Which certificate do you have for your equipment?
Each of our diverse products is associated with specific certificates, ensuring compliance with various standards. We can provide the necessary certificates as required by our customers.
How many staffs do you have in your factory?
Our team comprises 10 administrative staff members, 5 technical professionals, and 45 skilled workshop workers.
How can I to be your agent in my country?
Even though we are a factory, we have our own brand. To become our distributor, you need to have a substantial customer base, meaning you must reach a specified sales amount. Once appointed as a distributor, our factory will offer exclusive pricing to assist you in expanding your market share more effectively.
Do you have any agent in our country?
We haven't established sales points outside of the factory or appointed any distributors at the moment.
