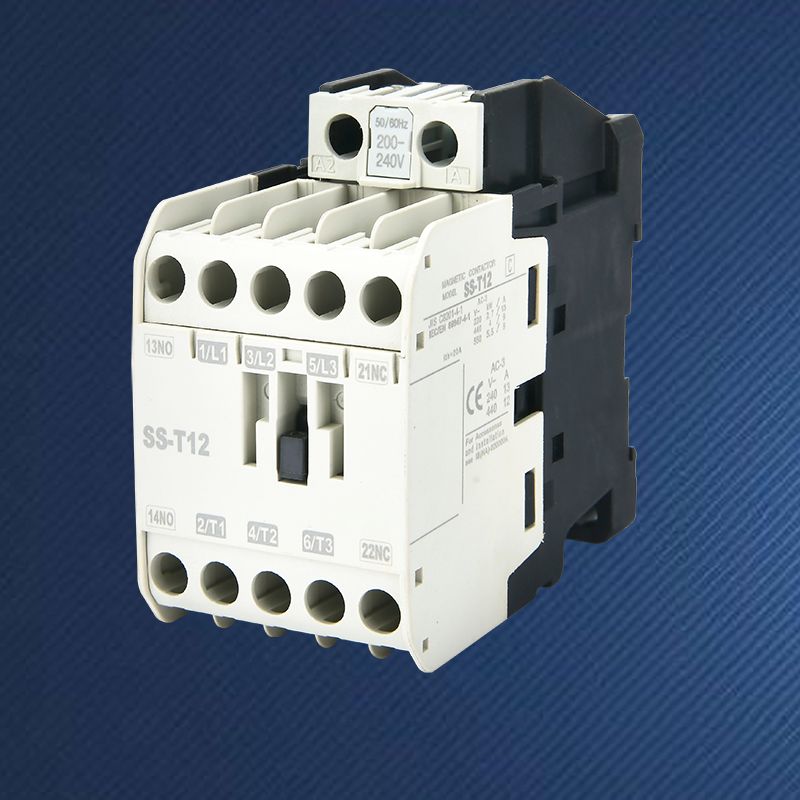

SS-T12 3 Phase AC Operated Magnetic Contactor
Product Details
Product Description
The AC Operated Contactor stands as a fundamental and ubiquitous electrical component within the relay control system. Its primary function is to establish and break connections, effectively controlling the operation of motors and various equipment. Functioning as an intermediate control component, its notable advantage lies in its ability to frequently connect and disconnect. Typically, it employs small current or voltage to manage larger currents or voltages in the system.
Our commitment to excellence is evident in the significant price advantage we offer, ensuring the competitiveness of our products in the market. Extending our reach across the Middle East and Southeast Asia, with a notable presence in Thailand, we have successfully catered to diverse needs and preferences.
As we look forward to the opportunity of establishing a lasting partnership with you, SPX Electric positions itself as your steadfast, long-term collaborator in China. Our dedication to quality and innovation is poised to contribute to the success and reliability of your electrical systems.
SPX AC operated Contactor Parameter
|
Framel(A) |
S-M10(S-T10) |
S-M12(S-T12) |
S-M20(S-T20) |
S-M21(S-T21) |
S-M25(S-T25) |
|||||
|
KWHP(AC-3) |
220V |
2.5/3.5 |
3.5/4.5 |
3.7 |
4 |
7.5110 |
||||
|
380V |
4/5.5 |
5.5/7.5 |
7.5 |
7.5 |
15/20 |
|||||
|
Reted cument(AC-3) |
220V |
11 |
13 |
18 |
20 |
30 |
||||
|
380V |
9 |
12 |
18 |
20 |
34 |
|||||
|
Reted heating cument(A) |
20 |
32 |
50 |
|||||||
|
Reted insutaled voltage(V) |
660 |
|||||||||
|
|
Cantac |
Standard |
1NO |
1NO+1NC |
1NO+1NC |
2NO+2NC |
||||
|
Reted cument(A) |
220V |
1.6 |
||||||||
|
380V |
0.95 |
|||||||||
|
Electric life |
100 |
80 |
||||||||
|
Machanical life |
1000 |
500 |
500 |
|||||||
|
|
|
|||||||||
|
Type |
L |
W |
H |
C1 |
C2 |
φD |
||||
|
S-T10 |
36 |
75 |
78 |
60 |
28 |
4.2 |
||||
|
S-T12 |
44 |
75 |
78 |
60 |
30/35 |
4.2 |
||||
|
S-T20 |
||||||||||
|
S-T21 |
63 |
81 |
81 |
58 |
54 |
4.5 |
||||
|
S-T25 |
||||||||||
|
Frame(A) |
S-M35(S-T35) |
S-M50(S-T50) |
S-M65(S-T65） |
S-M80(S-T80) |
|||||
|
K/HP(AC-3) |
220V |
11/15 |
15/18.5 |
18.5/22 |
22/30 |
||||
|
380V |
18.5/22 |
22/30 |
30/45 |
45/55 |
|||||
|
Reted current(AC-3) |
220V |
42 |
54 |
68 |
85 |
||||
|
380V |
40 |
50 |
65 |
85 |
|||||
|
Reted heating current(A) |
60 |
80 |
100 |
120 |
|||||
|
Reted insutaled voltage(V) |
690 |
||||||||
|
|
Contad |
Standard |
2NO+2NC |
||||||
|
Reted current |
220V |
1.6 |
|||||||
|
380V |
0.95 |
||||||||
|
Electric life |
85 |
65 |
|||||||
|
Machanical life |
500 |
300 |
|||||||
|
|
|
||||||||
|
Type |
L |
W |
H |
C1 |
C2 |
φD |
|||
|
S-M35 |
75 |
89 |
90 |
70 |
65 |
4.5 |
|||
|
S-M50 |
|||||||||
|
S-M65 |
88 |
103 |
105 |
75 |
70 |
5.5 |
|||
|
|
|||||||||
SPX AC operated Contactor Feature And Application
*Utilized in conjunction with thermal relay devices to safeguard equipment.
*Sustainable raw material
*Offering medium to high-end quality to cater to diverse customer needs and adapt to various markets.
*Silver contact
*It employs small current or voltage to control larger currents or voltages in the system, in addition to motors, SPX ac contactors are also used to control other electrical loads, such as electric heaters, welding machines, lighting equipment, etc.
SPX AC operated Contactor S-T12 Details

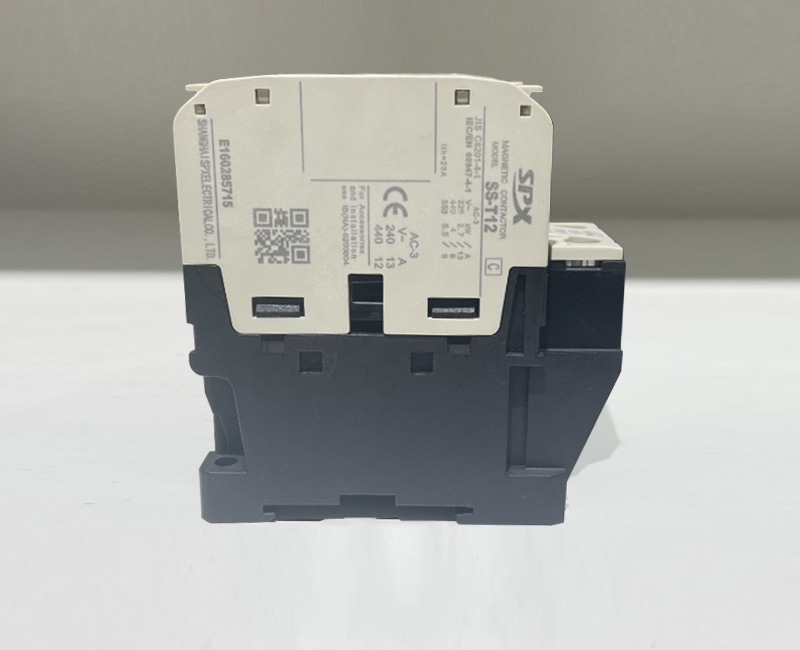

*with CE certificate

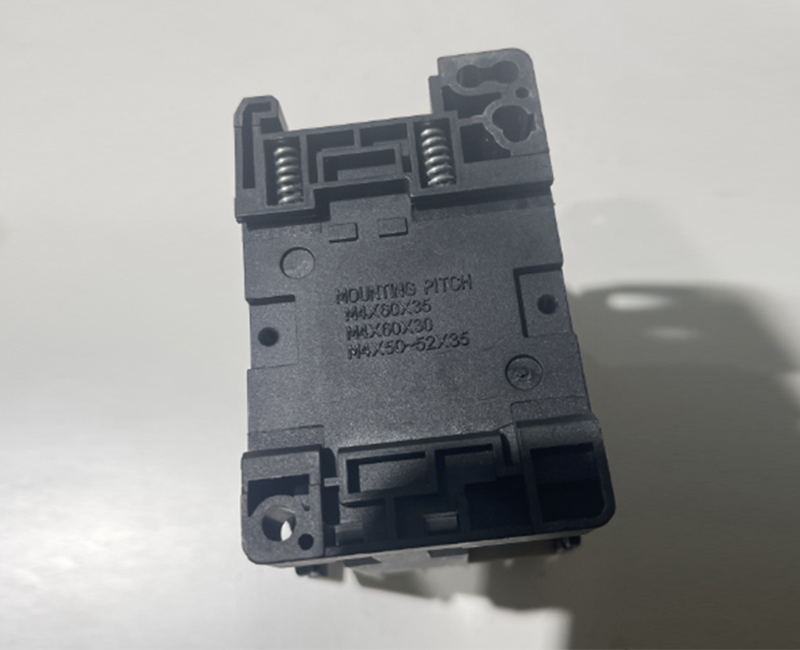

*Good material PA66

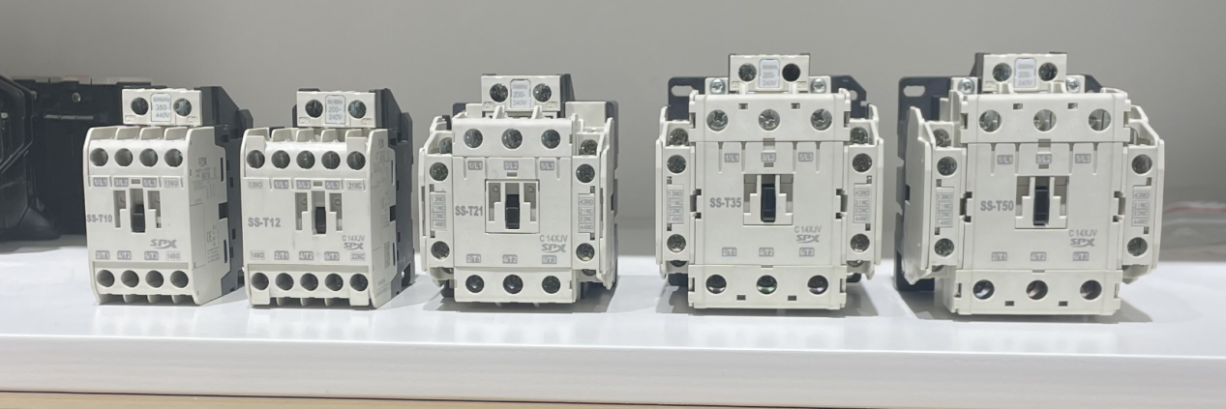

*Products of the same series
