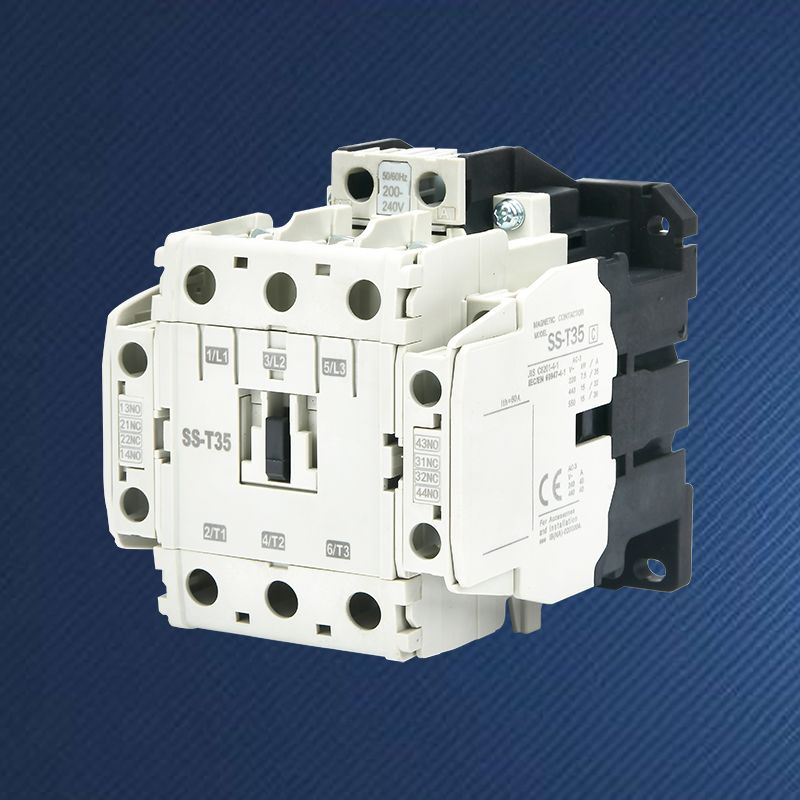

SS-T35 Industrial 3 Phase Ac Magnetic Contactor
Product Details
Product Description
The SPX durable Industrial Power AC Contactor S-T35 serves as a fundamental and widely used electrical component in relay control systems. Its primary function involves connecting and disconnecting lines, as well as frequently controlling the operation of motors and other equipment. Positioned as an intermediate control component, its notable advantage lies in its ability to frequently establish and break connections. Typically, it utilizes small currents or low voltages to control larger currents or higher voltages in the system.
SPX industrial power AC Contactor Parameter
|
Framel(A) |
S-M10(S-T10) |
S-M12(S-T12) |
S-M20(S-T20) |
S-M21(S-T21) |
S-M25(S-T25) |
|||||
|
KWHP(AC-3) |
220V |
2.5/3.5 |
3.5/4.5 |
3.7 |
4 |
7.5110 |
||||
|
380V |
4/5.5 |
5.5/7.5 |
7.5 |
7.5 |
15/20 |
|||||
|
Reted cument(AC-3) |
220V |
11 |
13 |
18 |
20 |
30 |
||||
|
380V |
9 |
12 |
18 |
20 |
34 |
|||||
|
Reted heating cument(A) |
20 |
32 |
50 |
|||||||
|
Reted insutaled voltage(V) |
660 |
|||||||||
|
|
Cantac |
Standard |
1NO |
1NO+1NC |
1NO+1NC |
2NO+2NC |
||||
|
Reted cument(A) |
220V |
1.6 |
||||||||
|
380V |
0.95 |
|||||||||
|
Electric life |
100 |
80 |
||||||||
|
Machanical life |
1000 |
500 |
500 |
|||||||
|
|
|
|||||||||
|

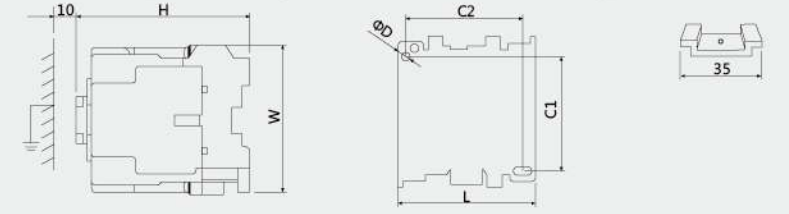

Type |
L |
W |
H |
C1 |
C2 |
φD |
||||
|
S-T10 |
36 |
75 |
78 |
60 |
28 |
4.2 |
||||
|
S-T12 |
44 |
75 |
78 |
60 |
30/35 |
4.2 |
||||
|
S-T20 |
||||||||||
|
S-T21 |
63 |
81 |
81 |
58 |
54 |
4.5 |
||||
|
S-T25 |
||||||||||
|
Frame(A) |
S-M35(S-T35) |
S-M50(S-T50) |
S-M65(S-T65） |
S-M80(S-T80) |
|||||
|
K/HP(AC-3) |
220V |
11/15 |
15/18.5 |
18.5/22 |
22/30 |
||||
|
380V |
18.5/22 |
22/30 |
30/45 |
45/55 |
|||||
|
Reted current(AC-3) |
220V |
42 |
54 |
68 |
85 |
||||
|
380V |
40 |
50 |
65 |
85 |
|||||
|
Reted heating current(A) |
60 |
80 |
100 |
120 |
|||||
|
Reted insutaled voltage(V) |
690 |
||||||||
|
|
Contad |
Standard |
2NO+2NC |
||||||
|
Reted current |
220V |
1.6 |
|||||||
|
380V |
0.95 |
||||||||
|
Electric life |
85 |
65 |
|||||||
|
Machanical life |
500 |
300 |
|||||||
|
|
|
||||||||
|
Type |
L |
W |
H |
C1 |
C2 |
φD |
|||
|
S-M35 |
75 |
89 |
90 |
70 |
65 |
4.5 |
|||
|
S-M50 |
|||||||||
|
S-M65 |
88 |
103 |
105 |
75 |
70 |
5.5 |
|||
|
S-M80 |
|||||||||
SPX industrial power AC Contactor Feature And Application
*Used together with thermal relay appliances to protect equipment.
*Environmentally friendly raw material
*With medium and high-end quality to meet the needs of different customers and adapt to different markets.
*Silver contact
*The main application target of AC contactors is motors, and they are also widely used to control other electrical loads, such as DC welding machines, power capacitors, electric water heaters, lighting fixtures, etc.

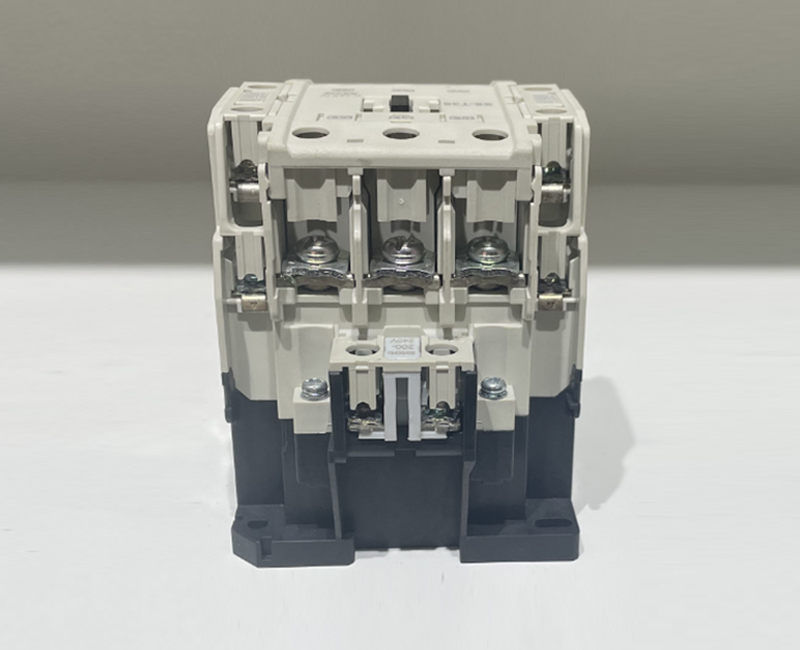

SPX industrial power AC Contactor S-T35 Details

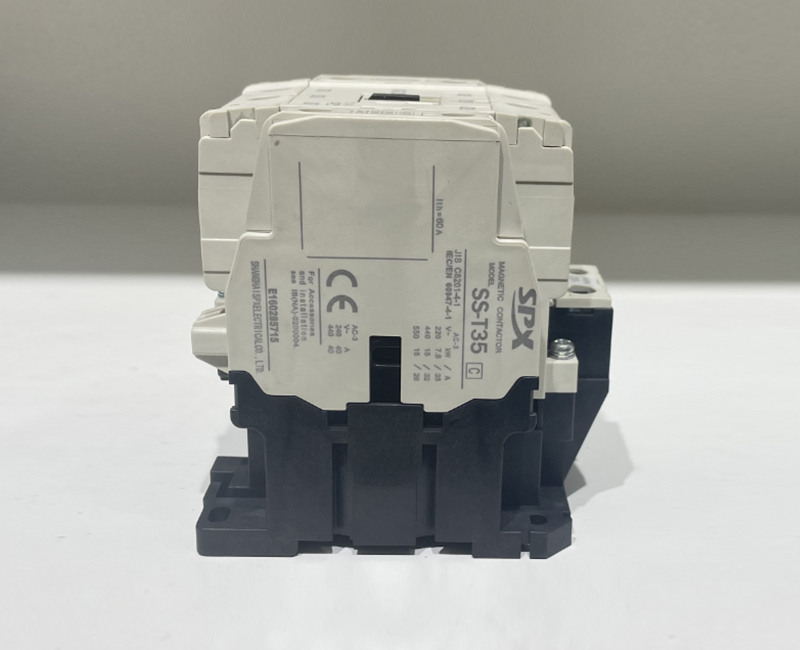

*with CE certificate
*Rear view

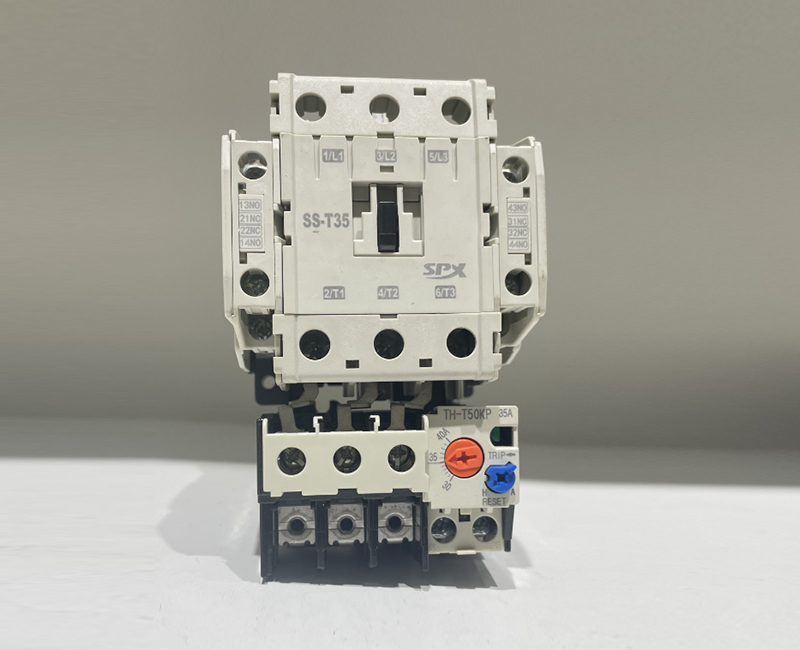

*match with thermal relay

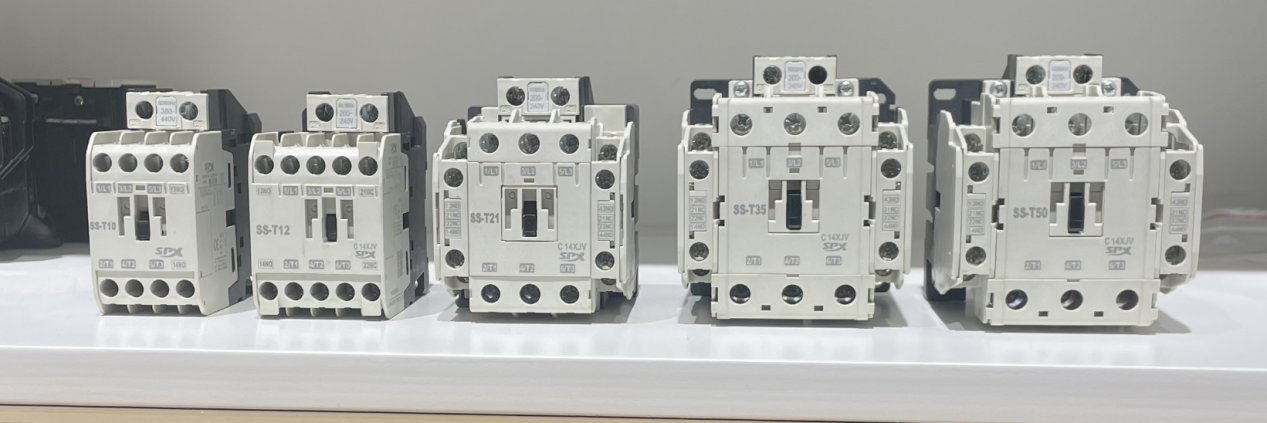

*Products of the same series
