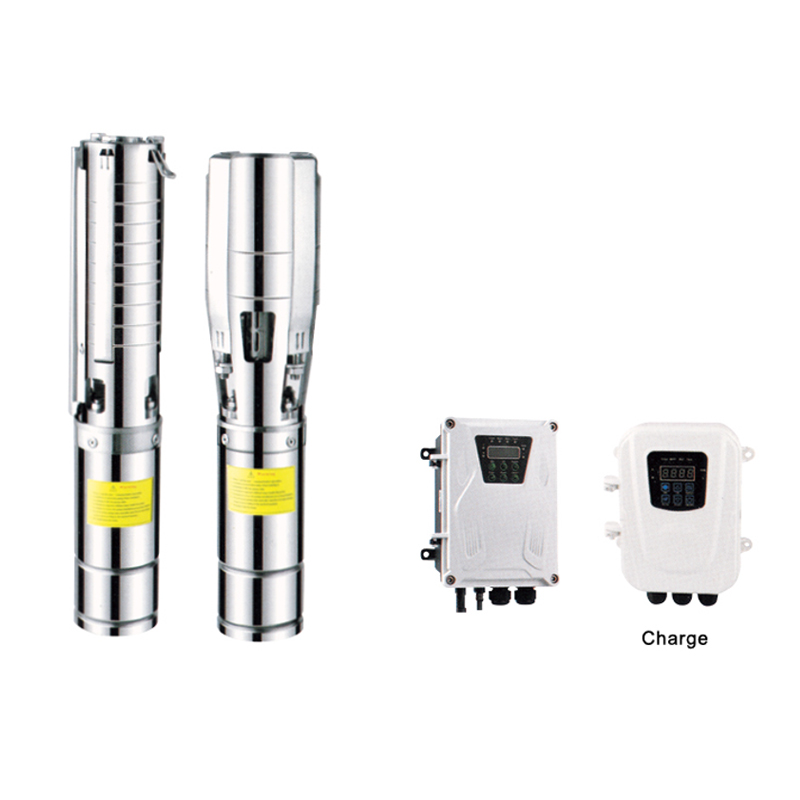

4/6 INCH SOLAR ENERGY STAINLESS STEEL IMPELLER PUMP
Product Details
Product Description
In the search for sustainable and efficient water supply solutions, the 4/6" Solar Powered Stainless Steel Impeller Pump stands out as an exceptional innovation. Designed for solar water supply systems, this pump is ideal for pumping groundwater or other water sources. With its unique features and capabilities, this pump is revolutionizing the way we access and utilize water, especially in remote areas where traditional electricity resources may be scarce.
The 4/6" designation refers to the size of the pump, indicating the diameter of its water inlet and outlet. With a 4" inlet and 6" outlet, this pump is ideal for pumping water from small to medium-sized water sources. This size allows for efficient water flow while ensuring the pump can handle a variety of applications from agricultural irrigation to domestic water supply. The versatility of the 4/6" Solar Stainless Steel Impeller Pump makes it a valuable asset in a variety of environments, meeting the specific water needs of each situation.

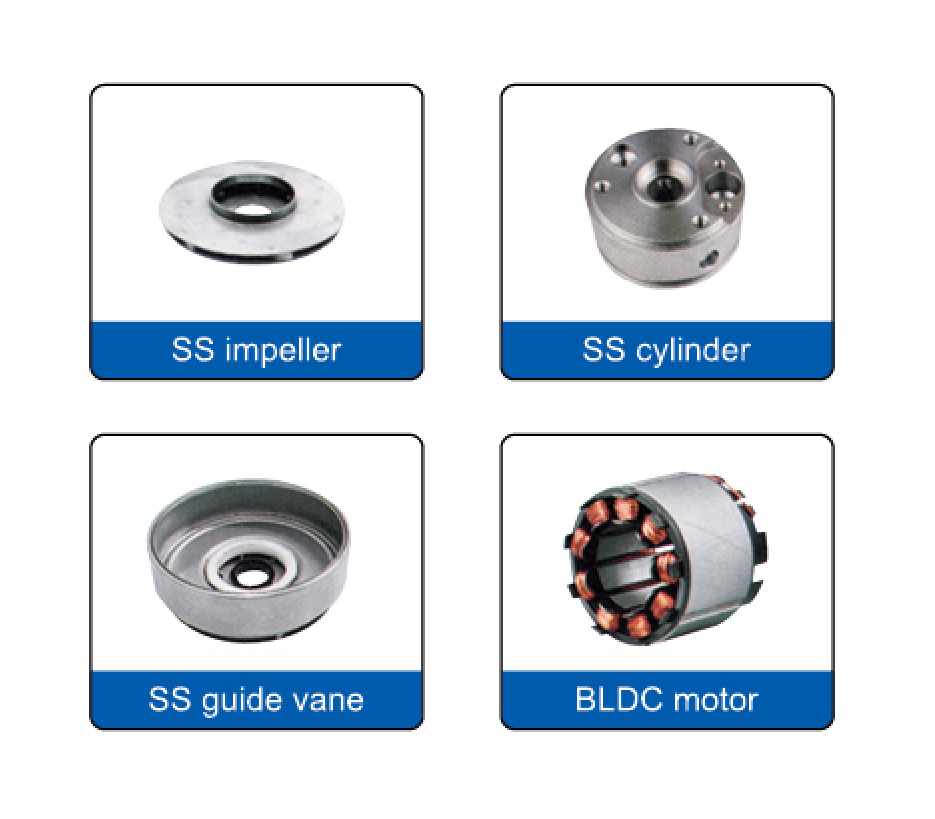

One of the standout features of this pump is its stainless steel construction. The pump body and impeller are made from high-quality stainless steel, which offers excellent corrosion and wear resistance. This durability ensures that the pump can operate effectively in a variety of water conditions, greatly extending its service life. The 4/6-inch Solar Stainless Steel Impeller Pump's rugged design means users can count on it for long-term performance, reducing the need for frequent replacement and maintenance.
Impeller design is another key aspect of the 4/6-inch Solar Stainless Steel Impeller Pump. As the core component responsible for moving water, the impeller is optimized to increase the pump’s efficiency and flow rate. This thoughtful engineering design enables the pump to move water more efficiently, ensuring users receive the necessary water supply without excessive energy consumption. Coupled with the solar drive feature, this pump embodies an environmentally friendly approach to water management, using renewable energy to power its operation.
The 4/6" Solar Powered Stainless Steel Impeller Pump is a testament to advancements in water technology. Its combination of size, durable stainless steel construction, optimized impeller design, and solar-powered capabilities make it an efficient, durable, and environmentally friendly choice for a variety of water source conditions. As we continue to seek sustainable solutions to our water needs, this innovative pump is ready to meet the challenges of modern water management and ensure everyone has access to clean, reliable water.

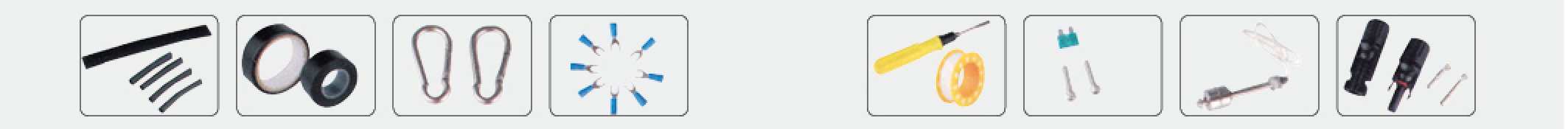

Free Spare Parts
Advantage Of Solar Water Pump
●High efficiency because of PMSM
●MPPT function
●Intelligent water shortage protection
●Longer life than normal ac water pump
●Over-load protechion Under-load protection
●Lock-rotor protection Thermal proteciton

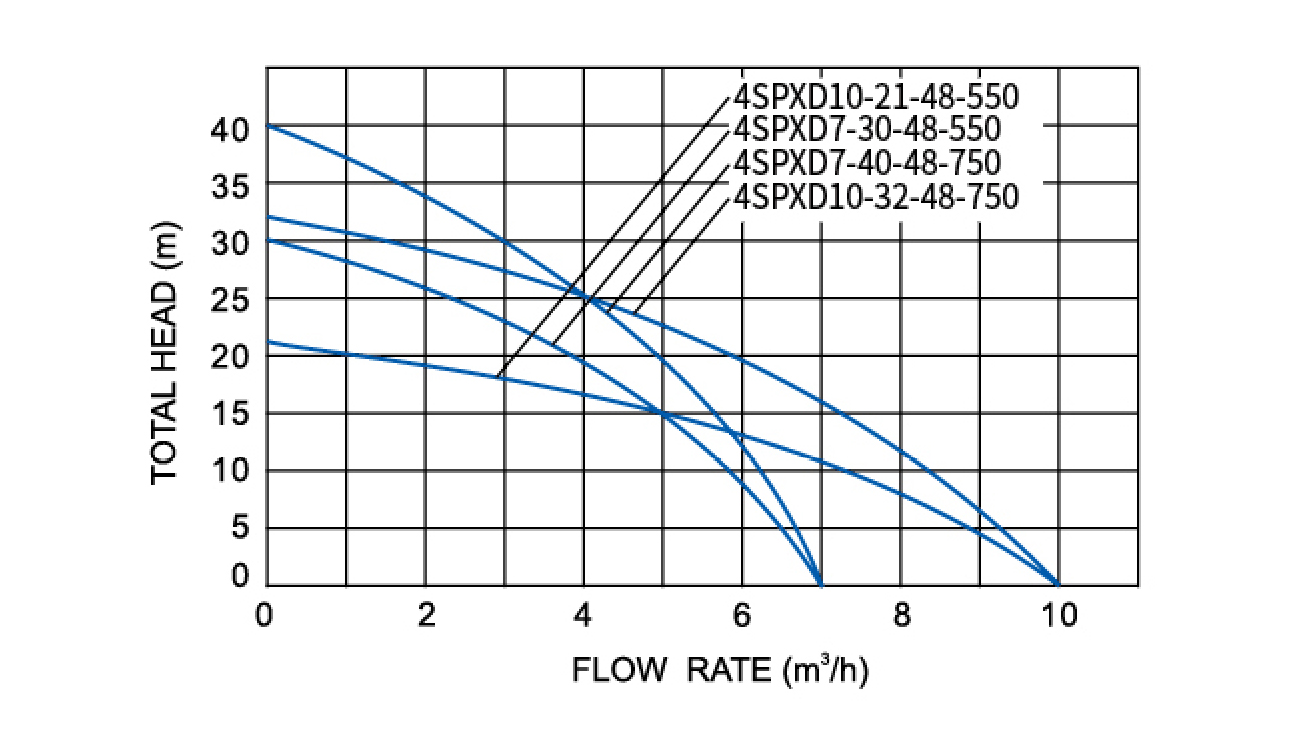

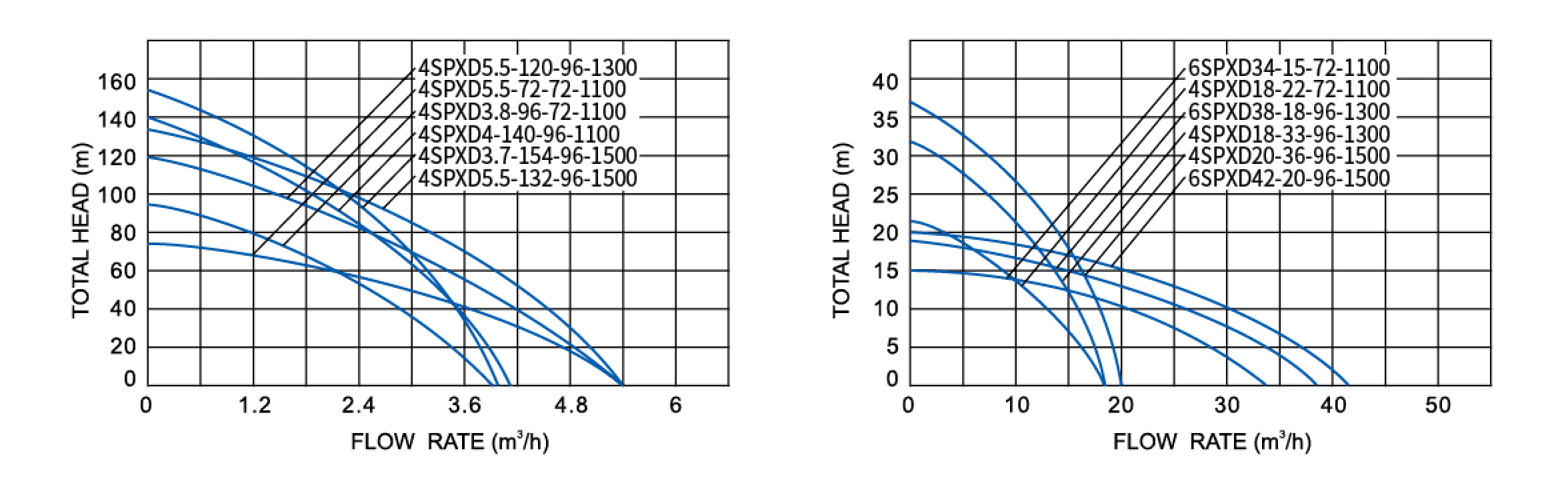

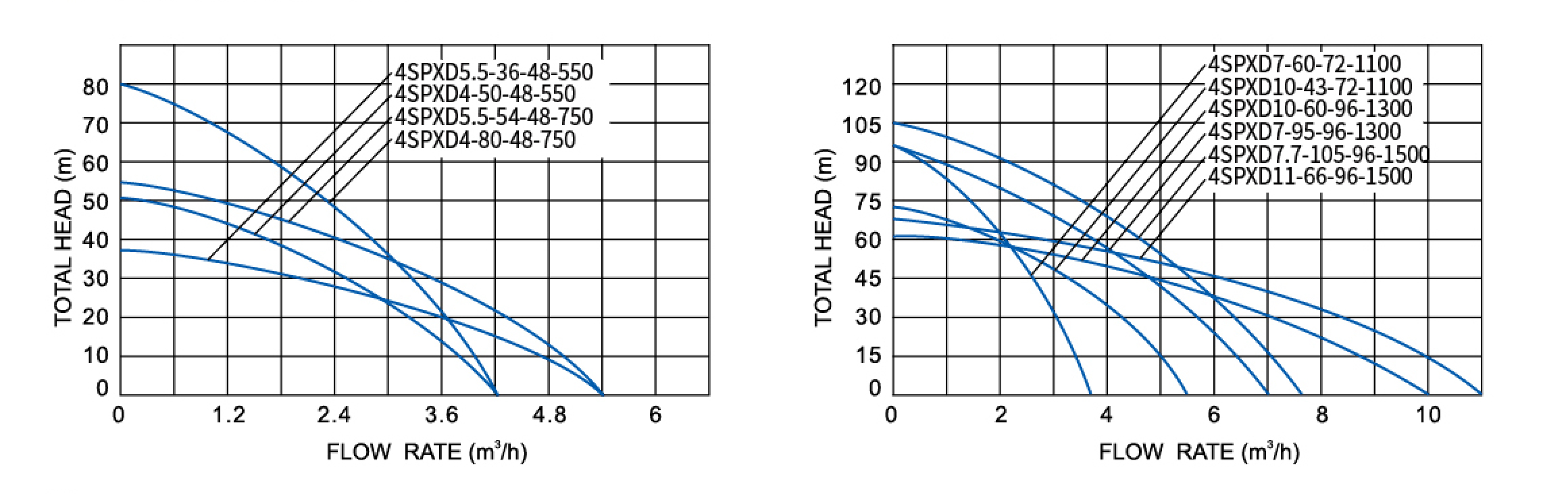

Performance Curves
Technical Data
| Model |
Max Flow (m³/h) |
Pump | Power(W | Pump Dia(inch) | Outlett Dia(inch) | Solar Panels | ||
| Max Head(m) | Voltage(V) | VOC Range(V) | Power(W) | |||||
| 4SPXD4-50-48-550 | 4 | 50 | DC48 | 550 | 4 | 1.25 | 50-100 | 800 |
| 4SPXD5.5-36-48-550 | 5.5 | 36 | DC48 | 550 | 4 | 1.25 | 50-100 | 800 |
| 4SPXD7-30-48-550 | 7 | 30 | DC48 | 550 | 4 | 1.25 | 50-100 | 800 |
| 4SPXD10-21-48-550 | 10 | 21 | DC48 | 550 | 4 | 1.5 | 50-100 | 800 |
| 4SPXD4-80-48-750 | 4 | 80 | DC48 | 750 | 4 | 1.25 | 50-100 | 1000 |
| 4SPXD5.5-54-48-750 | 5.5 | 54 | DC48 | 750 | 4 | 1.25 | 50-100 | 1000 |
| 4SPXD7-40-48-750 | 7 | 40 | DC48 | 750 | 4 | 1.25 | 50-100 | 1000 |
| 4SPXD10-32-48-750 | 10 | 32 | DC48 | 750 | 4 | 1.5 | 50-100 | 1000 |
| 4SPXD3.8-96-72-1100 | 3.8 | 96 | DC72 | 1100 | 4 | 1.25 | 75-150 | 1500 |
| 4SPXD5.5-72-72-1100 | 5.5 | 72 | DC72 | 1100 | 4 | 1.25 | 75-150 | 1500 |
| 4SPXD7-60-72-1100 | 7 | 60 | DC72 | 1100 | 4 | 1.25 | 75-150 | 1500 |
| 4SPXD10-43-72-1100 | 10 | 43 | DC72 | 1100 | 4 | 1.5 | 75-150 | 1500 |
| 4SPXD18-22-72-1100 | 18 | 22 | DC72 | 1100 | 4 | 2 | 75-150 | 1500 |
| 6SPXD34-15-72-1100 | 34 | 15 | DC72 | 1100 | 6 | 3 | 75-150 | 1500 |
| 4SPXD4-140-96-1300 | 4 | 140 | DC96 | 1300 | 4 | 1.25 | 100-200 | 1720 |
| 4SPXD5.5-120-96-1300 | 5.5 | 120 | DC96 | 1300 | 4 | 1.25 | 100-200 | 1720 |
| 4SPXD7-95-96-1300 | 7 | 95 | DC96 | 1300 | 4 | 1.25 | 100-200 | 1720 |
| 4SPXD10-60-96-1300 | 10 | 60 | DC96 | 1300 | 4 | 1.5 | 100-200 | 1720 |
| 4SPXD18-33-96-1300 | 18 | 33 | DC96 | 1300 | 4 | 2 | 100-200 | 1720 |
| 6SPXD38-18-96-1300 | 38 | 18 | DC96 | 1300 | 6 | 3 | 100-200 | 1720 |
| 4SPXD3.7-154-96-1500 | 3.7 | 154 | DC96 | 1500 | 4 | 1.25 | 100-200 | 2250 |
| 4SPXD5.5-132-96-1500 | 5.5 | 132 | DC96 | 1500 | 4 | 1.25 | 100-200 | 2250 |
| 4SPXD7.7-105-96-1500 | 7.7 | 105 | DC96 | 1500 | 4 | 1.25 | 100-200 | 2250 |
| 4SPXD11-66-96-1500 | 11 | 66 | DC96 | 1500 | 4 | 1.5 | 100-200 | 2250 |
| 4SPXD20-36-96-1500 | 20 | 36 | DC96 | 1500 | 4 | 2 | 100-200 | 2250 |
| 6SPXD42-20-96-1500 | 42 | 20 | DC96 | 1500 | 6 | 3 | 100-200 | 2250 |
