Product Description

The inverter also supports a variety of control methods, including operation panel setting, control terminal setting and serial communication port setting. Users can choose different control methods according to actual needs. This flexibility enables the inverter to adapt to different applications and meet the diverse needs of users.

In terms of frequency instructions, the inverter provides 10 frequency instructions, including digital setting, analog voltage, analog current, pulse and serial port setting, etc. Users can switch in a variety of ways. In addition, the design of auxiliary frequency instructions enables users to flexibly implement auxiliary frequency fine-tuning and frequency synthesis, further improving the flexibility and operability of the system.

The protection function and multiple control mode design of the inverter make it extremely safe and flexible in the field of industrial automation, and can meet the needs of various complex applications.

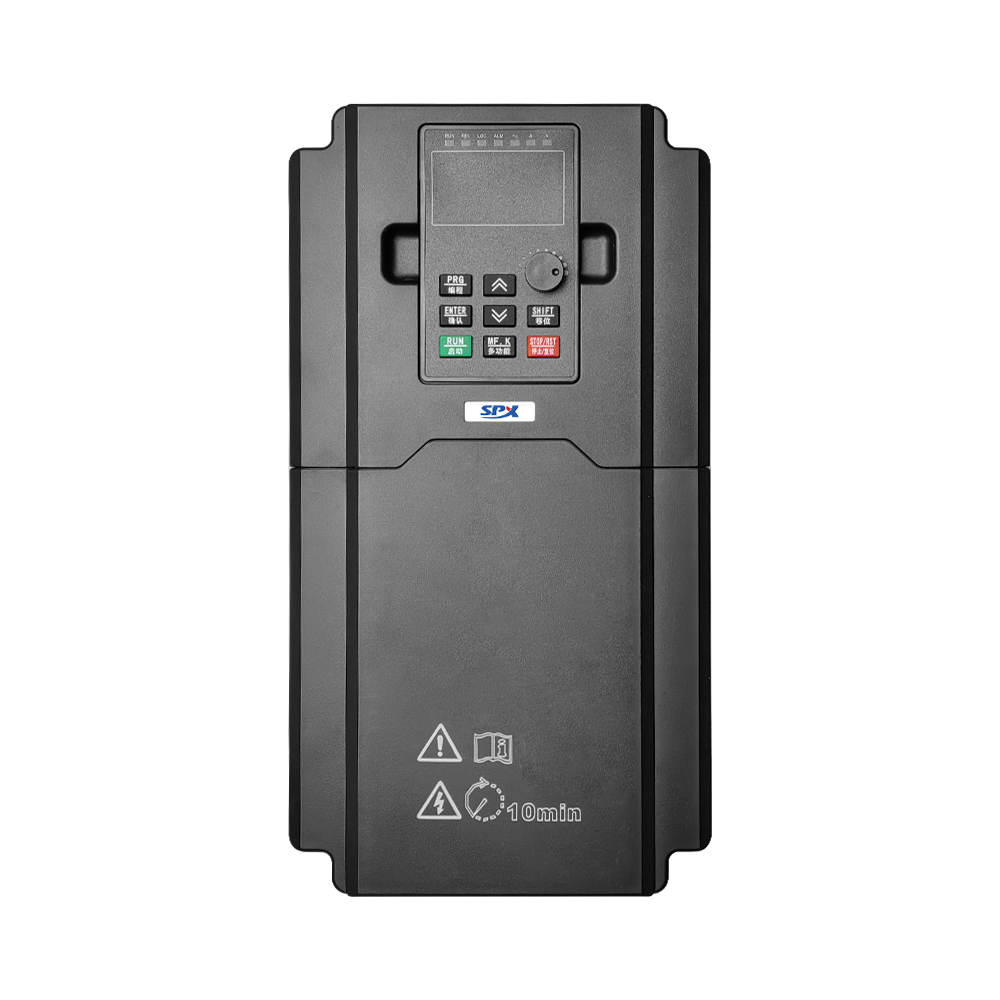

G18.5KW Technical Data

SPX inverter function parameters

●Torque limit and control: the "excavator" characteristic, to automatically limit the torque during theoperation, to prevent frequent overcurrent trip; the vector control mode can realize the torque control.

●Virtual IO: five sets of virtual DIDO,which can achieve simple logic control.

●Timing control: the timing control function shall set the time range of 0.0Min~6500.0Min.

●Multi-motor switch: two sets of motor parameters, can realize two motor switch control.

●Constant pressure water supply control: connected with the water supply control board, it can realize themulti-pump constant pressure water supply control function

●Multi-threaded bus support: support for six fieldbuses: Modbus, Profibus-DP, CAN link, CAN open, Profinet, Ether CAT.

●Motor overheating protection: the 10 extension card 1 is optional, and the analog input A13 can accept themotor temperature sensor input (PT100,Pt1000).

●Multi-encoder support: support for differential, open-circuit collector, UVW,rotary transformer, etc

●Run command: operation panel given, control terminal given, serial communication port given. It can beswitched in many ways

●Frequency instructions: 10frequency instructions: digital given, analog voltage, analog current, pulse,serial port given. It can be switched in many ways

●Auxiliary frequency instructions:10 auxiliary frequency instructions. It can flexibly realize the auxiliaryfrequency fine-tuning and frequency synthesis

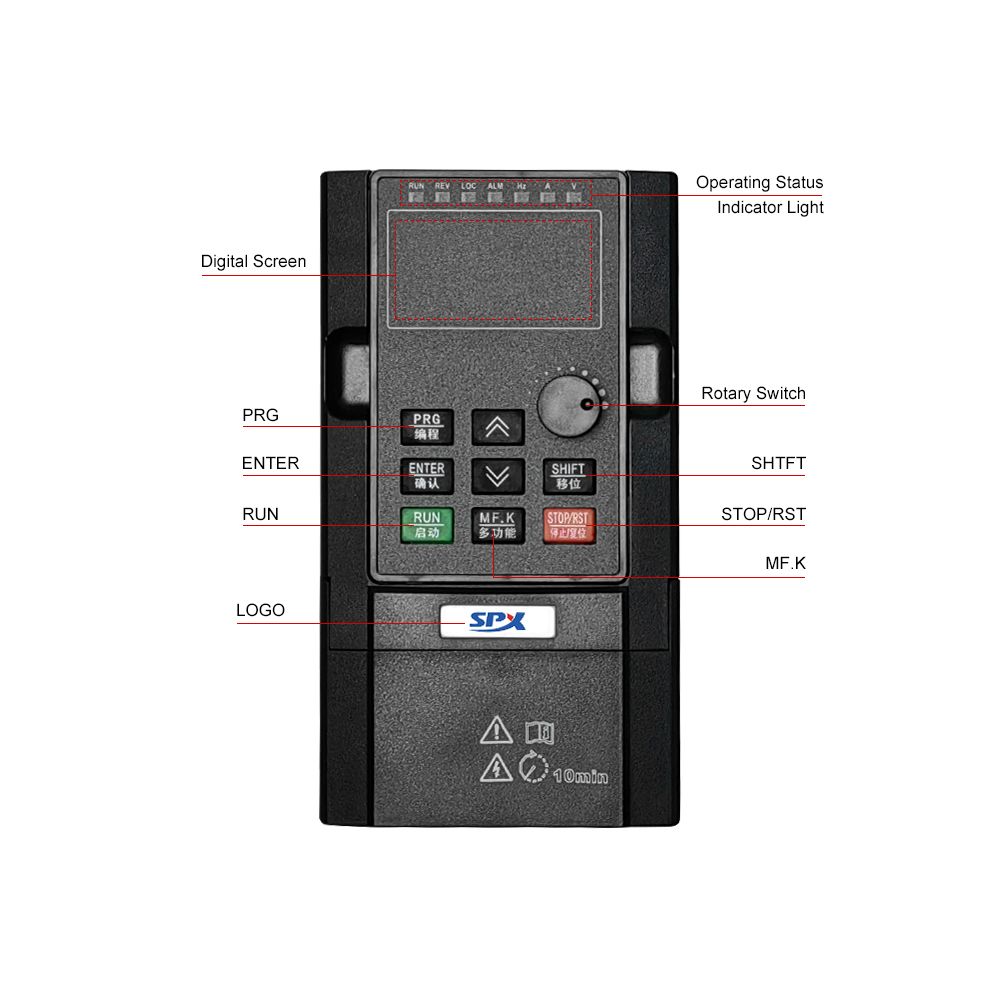

●Parameter copy: Quick replication of parameters through the LCD operation panel option

●Lack of phase protection: input lack of phase protection, output lack of phase protection

●Instant overcurrent protection: stop at more than 250% of the rated output current

●Key lock: Part or all of the keys can lock, defining the scope of some keys to prevent misoperation
